High-performance Film

SantacLB Sheet│

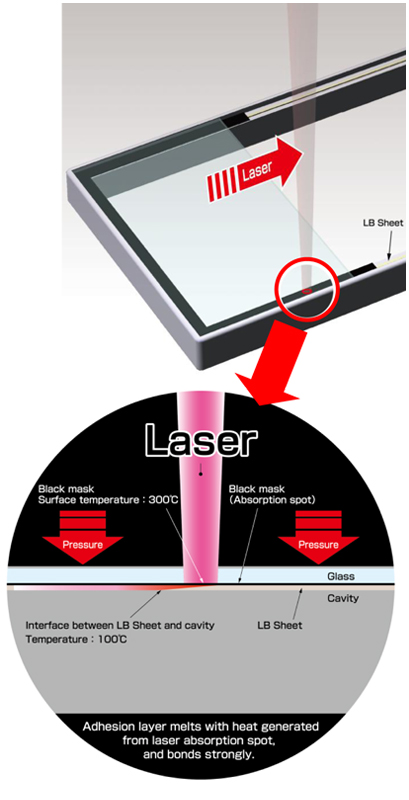

The adhesive layer of Santac LB sheet is Special Elastomer.
The elastomer melts with heat generated from Laser absorption spot(printing mask),and gives the excellent characterization.

Features

  • High-bond Strength
    Hot melt adhesion performs strong bonding
    LB sheet is about twice the bond strength of standard tapes
  • Easy Rework
    It is possible to rework easily by re-irradiating laser to bonding area.
  • Impact Resistance
    Elastomer adhesive layer absorbs the drop impact.
  • Water-proof
    Elastomer adhesive layer applied with laser covers the bumpy surfacesand prevents water from coming in.

Application

  • Bonding panel to housing(Adds narrow bezel and water proof)
  • Bonding battery to housing and pull-rework
  • Bonding BLU to LCD

Grade

Grade HS(B)-02-240 HS(B)-00-240 HS(B)-00-50
HS(B)-00-100
Feature High pushing strength,
High impact resistance,
Easy rework(Heating)		 Excellent pushing strength,
Good follow to a little bump,
Excellent impact resistance,
Easy rework(Heating or Pulling)		 High adhesion strength,
Easy rework(Heating or Pulling)

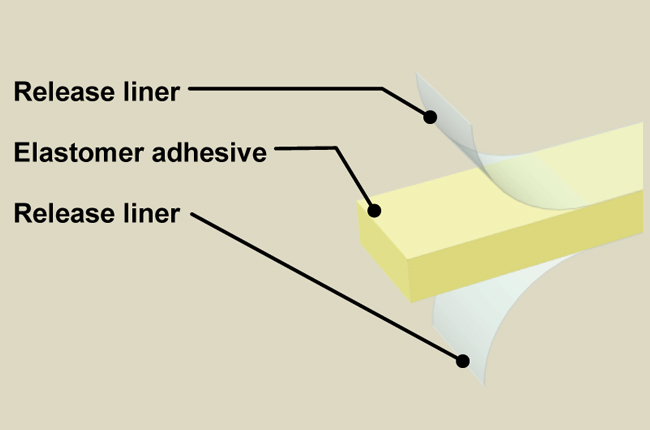

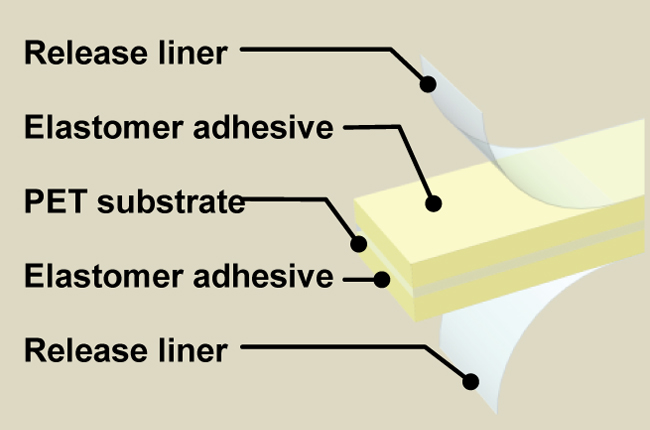

Structure

Property

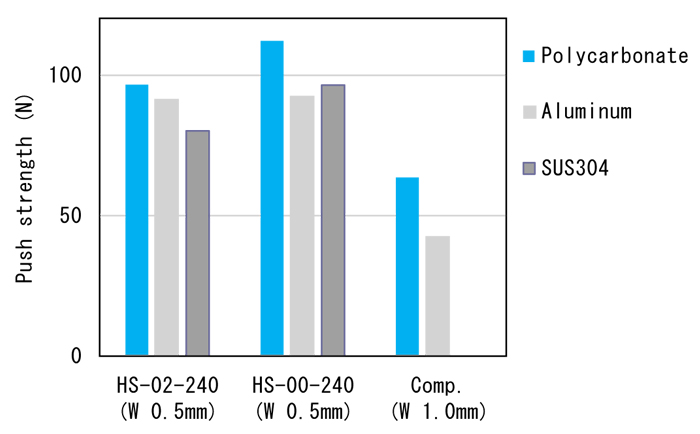

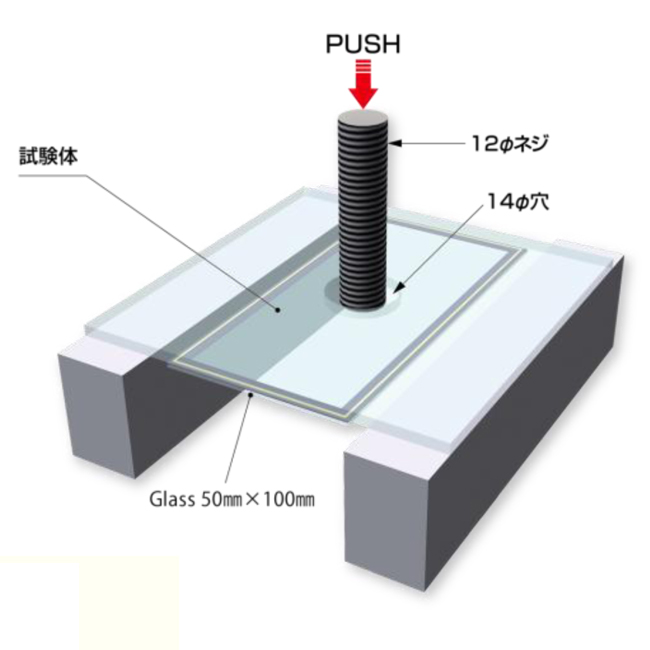

Push test

Push speed 7.5 mm/min

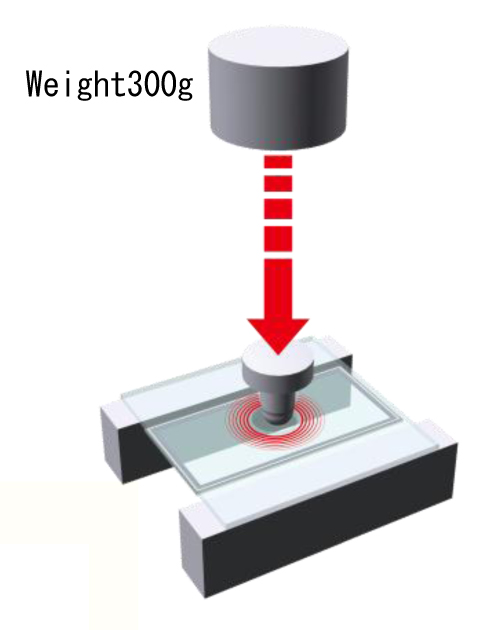

Impact test(-20℃)
Grade HS-02-240 HS-00-240 Comp.
Thickness um 240 200 200
Width mm 0.5 0.5 1.0
Peeling height cm 30 more than 35 Break glass 30

LB sheet：After pressing the tape with 1.0MPa, irradiate Laser at 3.5W×10 mm/sec. Cure for 24 hours.
Comp.Press：1.0MPa×30sec (Competitors 0.5MPa×30sec) Cure for 24 hours

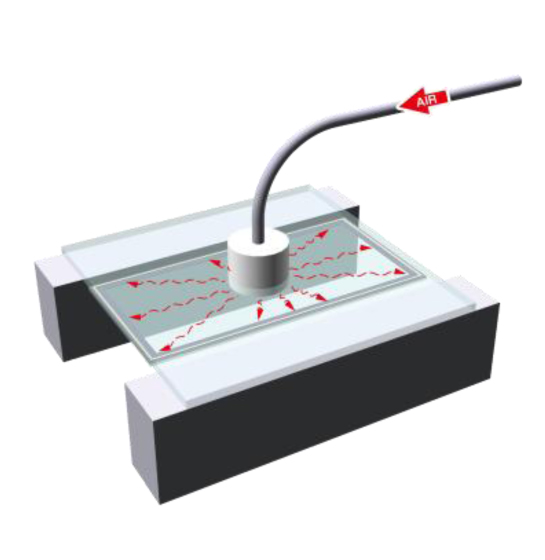

Air leakage
Grade HS-02-240 HS-00-240 Comp.
Thickness um 240 200 200
Width mm 0.5 0.5 1.0
Air leakage kPa 20 20 5

The same conditions as impact test

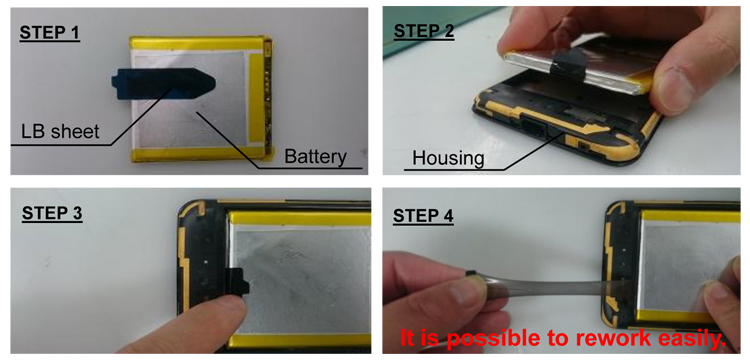

Rework
If you pull to vertical direction in order to unfix Battery, Santac LB sheet withstands strong pull force.
